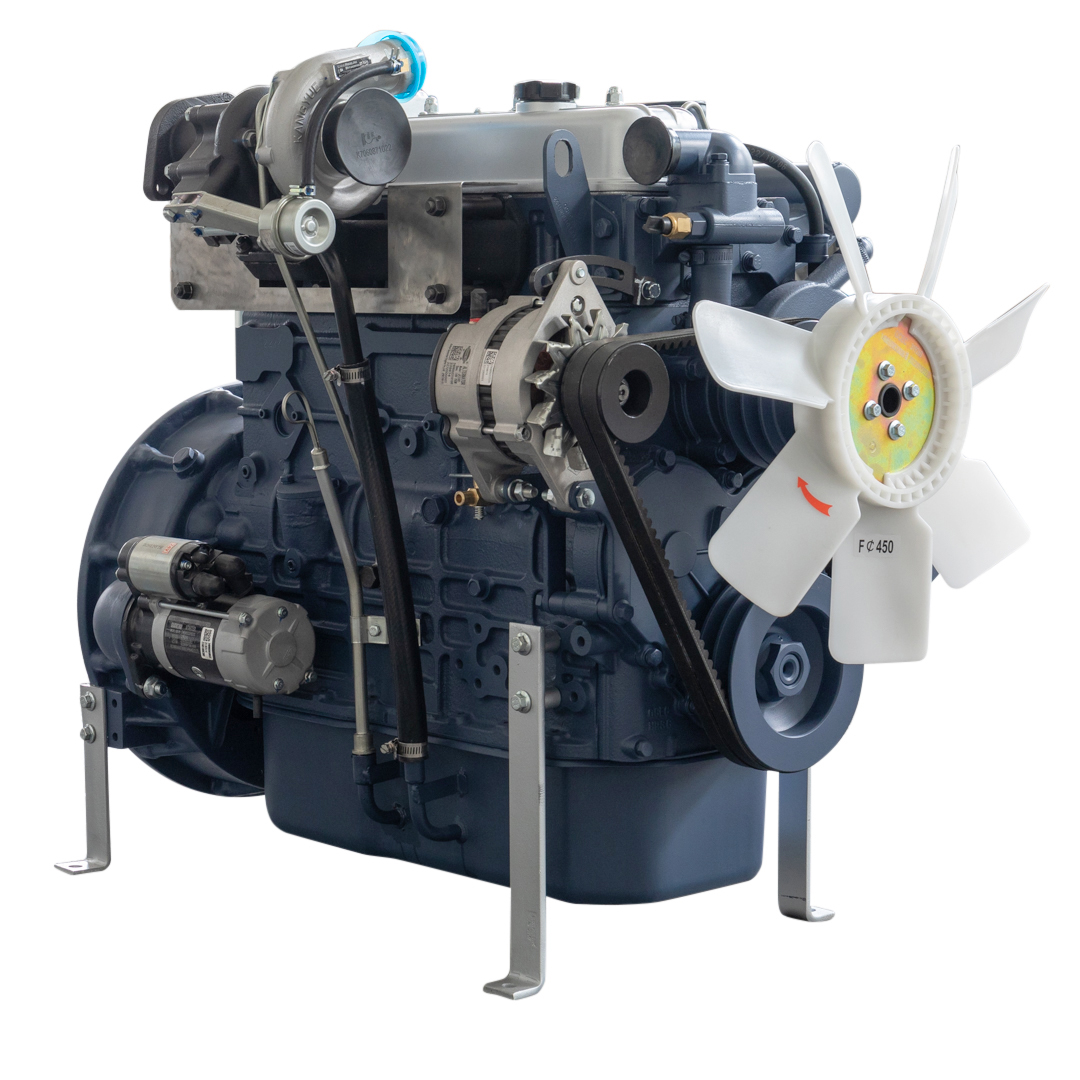

4108ZLD
4108ZLD

Direct injection combustion chamber, easy to start, low oil consumption and economical to use.

Easy to install and layout, light weight and compact structure.

Strong power , low vibration , low steady state speed governing rate.

Spare parts have good versatility.

Power interface conforms to the SAE standard, good market interchangeability and versatility.

Optional electronic governor, which make the engine speed more stable and steady state speed governing rate can be guaranteed within 1%.

Optional installation of radiator ,air filter ,silencer and other components.

Share

  • Product introduction

  • Product features

  • Main parameter

Direct injection combustion chamber, easy to start, low oil consumption and economical to use.



Easy to install and layout, light weight and compact structure.



Strong power , low vibration , low steady state speed governing rate.



Spare parts have good versatility.



Power interface conforms to the SAE standard, good market interchangeability and versatility.



Optional electronic governor, which make the engine speed more stable and steady state speed governing rate can be guaranteed within 1%.

Direct injection combustion chamber, easy to start, low oil consumption and economical to use.



Easy to install and layout, light weight and compact structure.



Strong power , low vibration , low steady state speed governing rate.



Spare parts have good versatility.



Power interface conforms to the SAE standard, good market interchangeability and versatility.



Optional electronic governor, which make the engine speed more stable and steady state speed governing rate can be guaranteed within 1%.



Optional installation of radiator ,air filter ,silencer and other components.

MODEL 型號  4108ZLD
BORE*STROKE(MM)缸徑×行程 108*118
TOTAL DISPLACEMENT(L)排量 4.32
ENGINE TYPE 柴油機類型  In-line type , 4 strokes,water cooled , turbocharging and inter-cooling
Combustion type   燃油方式  Direct injection
Cylinder type  氣缸類型  Dry liner
Compression ratio   壓縮比  17.5:1
BATTERY VOLTAGE 電池電壓 12v
Charging generator 發電機 750W  14V
Starting motor發動機 12v 3.7W
RATED POWER(KW)常用功率 89 98
STANDBY POWER(KW)備用功率 71 78.4
REATED SPEED(R/MIN)標定轉速 1500 1800
OUTPUT FRENQUENCY (輸出電源頻率）HZ 50 60
FLYWHEEL COVER TYPE (飛輪殼接口） SAE3# SAE3#
 FLYWHEEL TYPE （飛輪接口）   SAE 10'' or SAE 11.5''  SAE 10'' or SAE 11.5''
STEADY STATE SPEED GOVERNING RATE % ≤5
穩定調速率
NET WEIGHT (KG)凈重(KG) APROX 390KG
DIMENSION(L*W*H) 1180×706×1070MM (WITHOUT AIR FILTER AND RADIATOR )
最大外形尺寸(長×寬×高 MM)
ROTATION (VIEWED FROM FLYWHEEL) COUNTER CLOCKWISE
旋轉方向(面對飛輪端)
