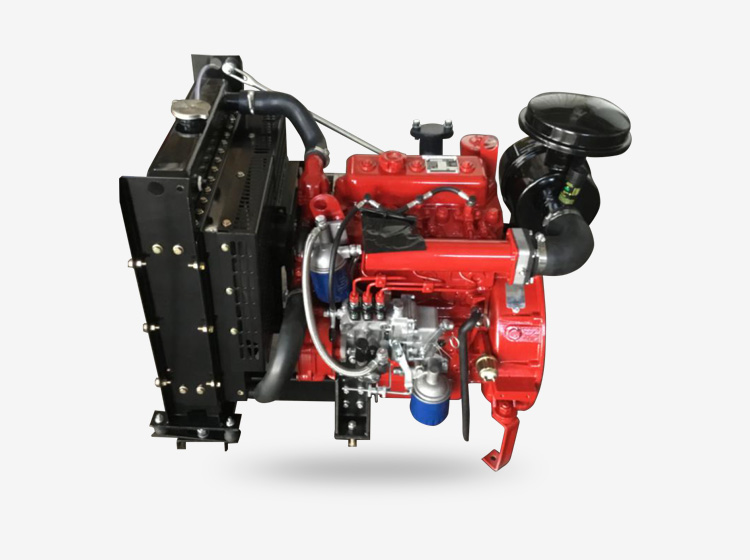

QC380Q
QC380Q

Usage: firefighting pump

Fuel: Diesel Stroke:4 Stroke

Cylinder: Multi-cylinder

Cold Style: W ater-cooled

Start: Electric Start

Place of Origin: Anhui, China (Mainland)

Brand Name: Quanchai

Model Number: QC380Q

Type: natural chamber: direct injection cooler system: water cooler

No. of cylinder:3 cylinders

Engine: diesel

Share

  • Product introduction

  • Product features

  • Main parameter

Use the direct injection combustion chamber ,easy start, low fuel consumption, better economy


Compact structure, light weight, easier installation.


Strong power, little vibration, good speed-governing.


The key spare part is same as of the high-speed vehicle engine parts, make the diesel engine be good reliability.

Use the direct injection combustion chamber ,easy start, low fuel consumption, better economy


Compact structure, light weight, easier installation.


Strong power, little vibration, good speed-governing.


The key spare part is same as of the high-speed vehicle engine parts, make the diesel engine be good reliability.

Model QC380Q
Type Vertical , in -line , water -cooled , four -stroke , direct fuel injection
Cylinder No. – Bore & Stroke(mm) 3-80*90
Displacement (L) 1,36
Cylinder liner type WET
Intake way Natural intake
Rated output/speed (kw/r/min) 20/3,000
Max torque (N.m/r/min) 71/2,100
The minimum fuel consumption ratio ≦ 248g/kw.h
Flywheel and Flywheel cover type  Sae 4#7.5
Idle speed <1000rpm
Steady regulation ≦5%
Compression ratio 18:01
Firing order 1-3-2
Specific lube oil consumption (g/kW. h) ≤1.63
Direction of crankshaft rotation Counterclockwise (facing to flywheel)
Governor TQB All-speed mechanical centrifugal
