1.Direct injection combustion chamber, easy to start, low oil consumption and economical to use.
2.Easy to install and layout, light weight and compact structure.
3.Strong power , low vibration , low steady state speed governing rate.
4.Spare parts have good versatility.
5.Power interface conforms to the SAE standard, good market interchangeability and versatility.
6.Optional electronic governor, which make the engine speed more stable and steady state speed governing rate can be guaranteed within 1%.
7.Optional installation of radiator ,air filter ,silencer and other components.
Product introduction
Product features
Main parameter
MODEL
QC385D
BORE*STROKE(MM)
85×90
TOTAL DISPLACEMENT(L)
1.532
RATED POWER(KW)
10
12
STANDBY POWER(KW)
11
13.2
REATED SPEED(R/MIN)
1500
1800
REATED POWER FOR GENERATOR SETS (KVA)
STANDBY POWER FOR GENERATOR SETS (KVA)
REATED POWER FOR GENERATOR SETS(KW)
8
STANDBY POWER FOR GENERATOR SETS (KW)
9
10.5
STEADY STATE SPEED GOVERNING RATE %
≤5
MAX SPEED ON NO LOAD(R/MIN)
1575
MIN SPEED ON NO LOAD(R/MIN)
800
SPECIFIC FUEL CONSUMPTION RATE AT MAX. SPEED (G/KW·H)
≤262
NET WEIGHT (KG)
175
DIMENSION(L*W*H)
627×545×610 (WITHOUT AIR FILTER AND RADIATOR )
ROTATION (VIEWED FROM FLYWHEEL)
COUNTER CLOCKWISE
FLYWHEEL HOUSE SIZING
SAE4#
FLYWHEEL SIZING
SAE7.5′′
NUMBER OF TEETH OF THE FLYWHEEL
115
VALVE LAYOUT
TYPE OF THE VALVE
OVERHEAD
VALVES PER CYLINDER
ONE INLET AND ONE EXHAUST VALVE
VALVE CLEARANCE
INLET VALVE
0.2~0.25mm
EXHAUST VALVE
0.25~0.3mm
FUEL CONSUMPTION (KG/H)
SPEED
POWER
RATED
STANDBY
100% FULL LOAD
2.61
2.7
75% LOAD
1.9
2.1
50% LOAD
1.35
1.5
25%LOAD
0.99
1.1
FUEL SYSTEM
INJECTION TYPE
DIRECT INJECTION
SPEED REGULATOR
MECHANICAL TYPE
FUEL INJECTION PUMP
INJECTOR DIAMETER
0.25MM
INJECTOR OPENING PRESSURE
22±0.5MPA
FUEL FITLER
SINGLE POLE ,PAPER TYPE
FUEL
DIESEL
LUBRICATION SYSTEM
LUBRICATION TYPE
FORCED LUBRICATION AND SPLASH LUBRICATION
LUBE OIL GRADE
CD-40
LUBE OIL VOLUME
4L
MAX ALLOWABLE OIL TEMPEARTURE
115°C
OIL PRESSURE
MAX
650kpa
MIN
100kpa
COOLING SYSTEM
COOLING METHOD
FORCED WATER CIRCULATION
WATER PUMP FLOW
80L/MIN(3000RPM WATER PUMP FLOW HEIGHT 5M)
MOTOR WATER VOLUME
3.15L
MAX WATER TEMPERATURE
95°C
RADIATOR VOLUME
6.5 L
OPENING TEMPERATURE /FULL OPEN TEMPERATURE OF THERMOTAT
70°C/82°C
FAN DIAMETER(MM)
φ410
ELECTRICAL SYSTEM
ALTERNATOR
14V×500W
VOLTAGE STABLILIZER
BUILT-IN VOLTAGE STABILIZER
MOTOR
12V×3kW
BATTERY VOLTAGE
12V
BATTERY VOLUMNE
≥100AH (RECOMMENDED )
COLD START AUXILIARY DEVICE
INLET HEATER
INTAKE AND EXHAUST SYSTEM
AIR FLOW KG/H
63
EXHAUST FLOW KG/H
66
MAX PERMISSIBLE RESTRICTIONS OF EXHAUST SYSTEM KPA
SPEED SENSOR INTERFACE
M18X1.5
DISTANCE BETWEEN THE MOUNTING SURFACE OF THE SPEED SENSOR AND THE TOP OF THE FLYWHEEL GEAR RING
16mm
Service Hotline
400-1885666
TEL: +86-550-5038198
FAX: +86-550-5015888
EMAIL: gujun@quanchai.com.cn
POST CODE: 239500
ADD: NO.788, WUJINGZI ROAD,QUANJIAO COUNTY,ANHUI PROVINCE,P.R.CHINA
Focus on WeChat

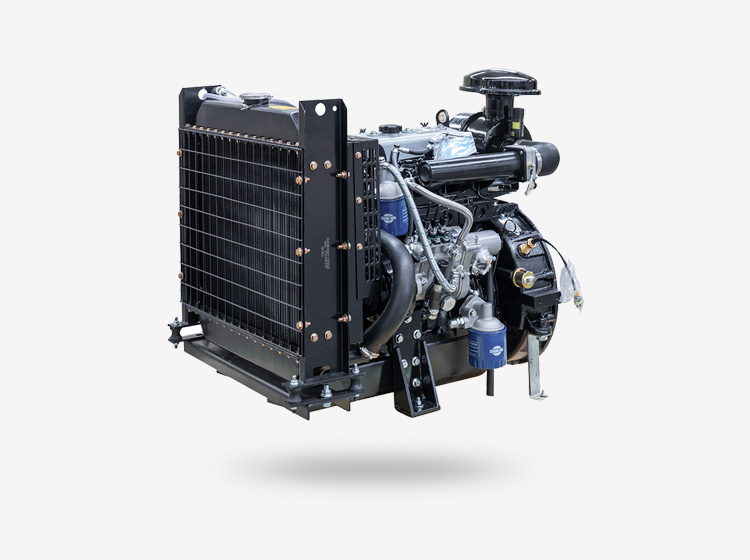

Overall view
